Greenwich

Time:2014-02-20 17:29Source:Metro-3D Click:

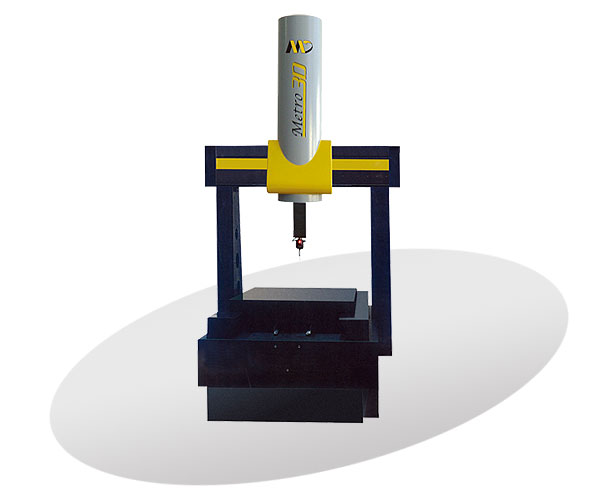

a fixed bridge measuring machine Greenwich, to the optimization of the design concept and a wealth of practical experience, accuracy, repeatability, speed and stability blend, for quality control and testing of high-precision products provide a guarantee.
Granite structure, fixed gantry design and overall dual dovetail guide, fixed table design, which makes the mechanical performance and maintain high stability and reliability, with excellent spatial accuracy and excellent dynamic performance. To complete sophisticated workpiece measurement and contour scanning, to ensure that the measurement results with high accuracy.

outstanding performance - and enjoy the benefits of high-precision measuring machine

▪ full the precision granite beams, the whole base, column, table, Z-axis to form a fully enclosed frame structure, with an unparalleled stability and resistance to the timeliness, laid the accuracy of long-term and stable basis.

▪ High-precision, whole eyes tail rail, triaxial are center drive, greatly reduced due to the axis motion pitch and the Wiggler Abbe error.

▪ thick solid granite countertops in the guarantee on the basis of long-term stability, and greatly reduce the impact of vibration on the accuracy.

▪ unique the large span flotation design, strong bearing capacity, to keep the machine moving at high speed Wiggler minimum stability.

▪ high rigidity, surrounded by encircling the distribution of air bearing pre-load, high-load-bearing to ensure smooth and stable machine movement.

▪ improve aerodynamic balance configuration the pneumatic safety protection device.

▪ Unique new two-stage the deceleration drive system, to ensure that the positioning is fast, accurate, high positioning accuracy.

▪ good anti-aging deformation capacity, the geometric accuracy of the machine is the long-term stability.

▪ powerful, stable power control system, greatly improved motion control features.

▪ greatly flexibility to configure the use of a variety of probes.

▪ very good repeat accuracy and long service life, is to have the machine users to enjoy a high rate of return.

▪ production and commissioning experience.

▪ very low maintenance rate, fully enhance the value of the use of the machine.

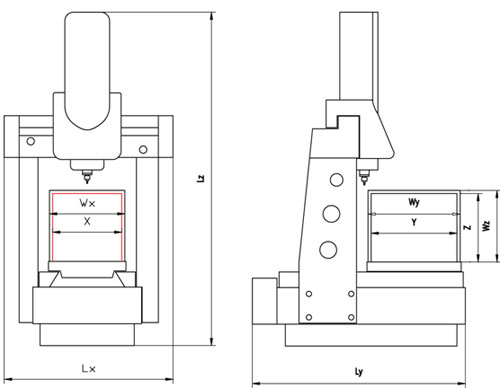

测量范围/STROKES
X(mm)
Y(mm)
Z(mm)
500~1200
500~1800
400~800
精度指标/MEASURING ACCURACY
MPEE (µm)
0.9+3.0L/1000起
Rep. (µm)
1.0起
